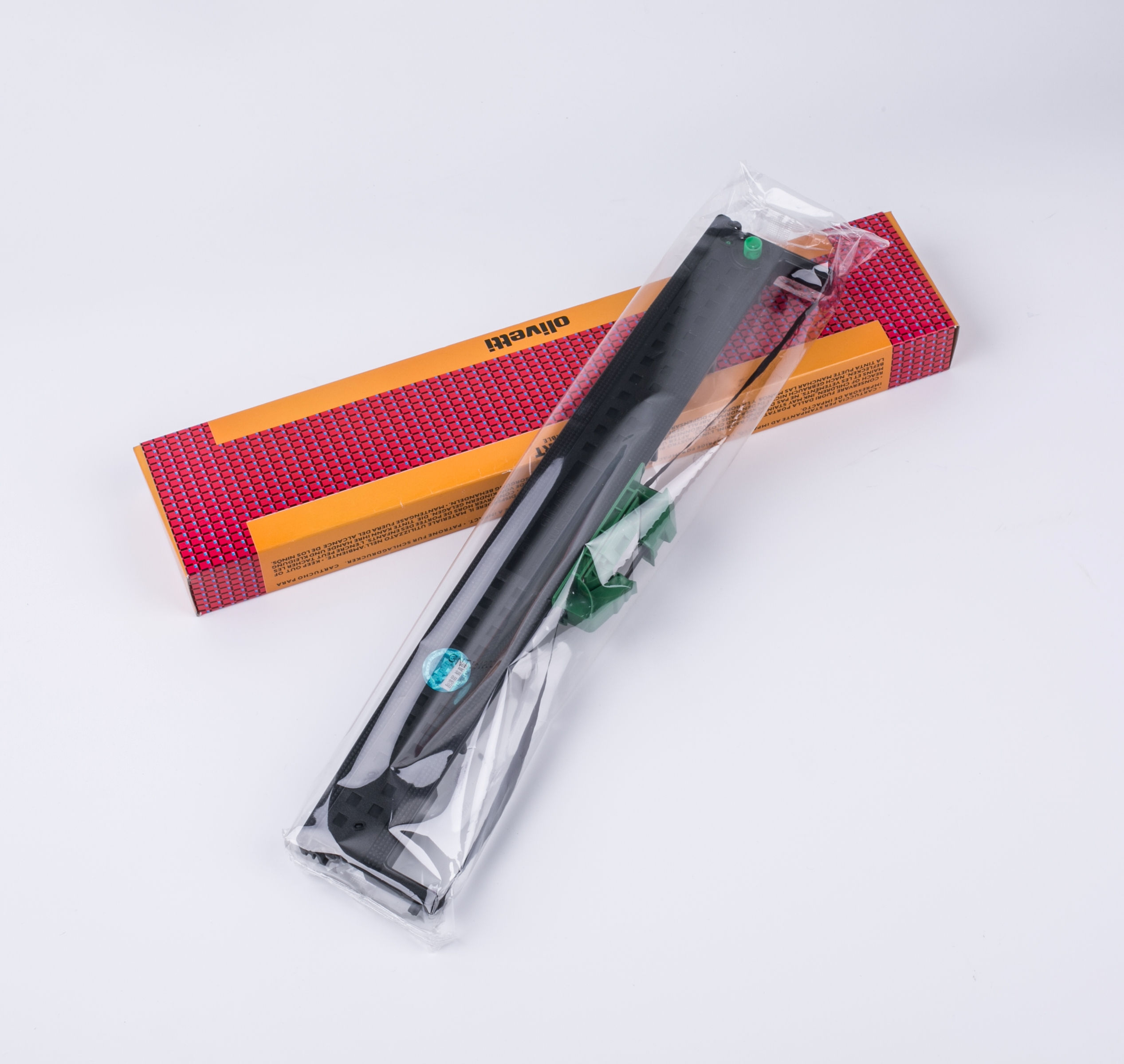

Olivetti PR2 /PR2E/PR2plus ribbon cartridge

Project

Specification

Model

BO375→PR2,PR2E,PR2plus

code

BO375

Material

Nylon 66HD

Width

6.9mm+0.3 -0

Length

19m+0.5 -0

Yarn(Nil)

Channels: 40D-34F

Weft: 40D-34F

Tightknit (count/cm)

Channels: 80±5

Weft: 40±5

Weld joint

Yes, sinistrogyration

Weld strength

Fit GB/T 4313-2002

Printing ink

1093 printing ink,                    17%~18%,    black.

Dimension

346(L) *61(W)*12(H)

Life time

3 million characters





TP-850 Specification

Printing method           Direct Thermal Printing

Paper feed mode            Unidirectional with friction feed

Paper eject direction      Eject from top

Dot density             640 dots/line (203×203 DPI)

Printing width              Max:80 mm, 640 dots

Print speed             Max: 300 mm/s

Paper feed speed       Max: 300 mm/s

Line spacing            3.75 mm

Print head life              150 Km, 1X108 pulse

Note: The instructions are all under the laboratorial measurements with specified paper.

Cutter life                1.5 million cut

Paper thickness          0.065 ~ 0.12 mm

Thermal roll paper model       AF50KS-E (JUJO THERMAL)

Width: 79.5 ±0.5 mm; 57.5 ± 0.5 mm

Weight: 53 ~ 80 g/m2

Paper specification          Maximum diameter: Φ83 mm

Paper thickness: 0.065 ~ 0.12 mm
